Navigation:  Data Export and Import > Import from Halocline

ema Work Designer offers functionalities for importing process and layout information from the Halocline software. By selecting the Import from Halocline ... menu item, an import dialog opens in which Halocline reports and the associated layout can be selected and imported in the appropriate formats (see figure Import options).

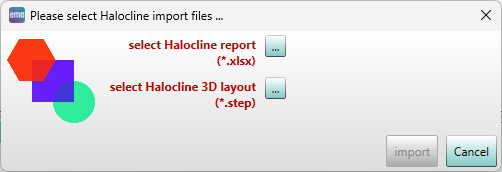

Figure 211: Import options



The following elements are automatically created in ema Work Designer:

▪object structure analogous to exported STEP file from Halocline including any existing object weights

▪human model with naming from Halocline

▪task groups for picking up and placing objects handled in Halocline (incl. naming)

▪picking tasks from objects handled in Halocline (including naming, grab points, and weights)

▪placement tasks including placement targets with automatically generated references

▪task groups "Join" for joined objects in Halocline



Figure 212: Comparison Halocline and emaWD



Halocline is registered trademark of Halocline GmbH & Co. KG
