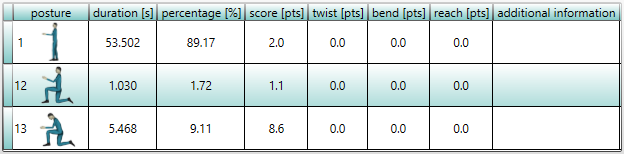

The figure given below shows a table of the postures predefined according to EAWS, their frequency in the evaluated simulation and the points resulting therefrom (see figure Postures). Thus, this figure corresponds to the second page of the EAWS worksheet for module 1 (postures).
Figure 84: Postures
In the column Posture, the corresponding postures are illustrated in simplified form by a small image and numbered with the corresponding line number according to EAWS.
Each entry in the column Duration [s] displays the total time that a human model was in a given position during a simulation. The sum of the column relates to the simulation as a whole, and is therefore is not limited by the cycle time.
The column Percentage [%] shows the percentage of each posture in relation to the cycle time. In the event that the simulation time exceeds the given cycle time, the sum of all entries of this column will exceed 100%.
In the columns Score [pts], Twist [pts], Bend [pts] and Reach [pts] the calculated points for each posture are displayed. The points are calculated from the duration and the degree of the respective postures according to EAWS and are subsequently added to the total points.
The column Additional information documents the application of special rules.
